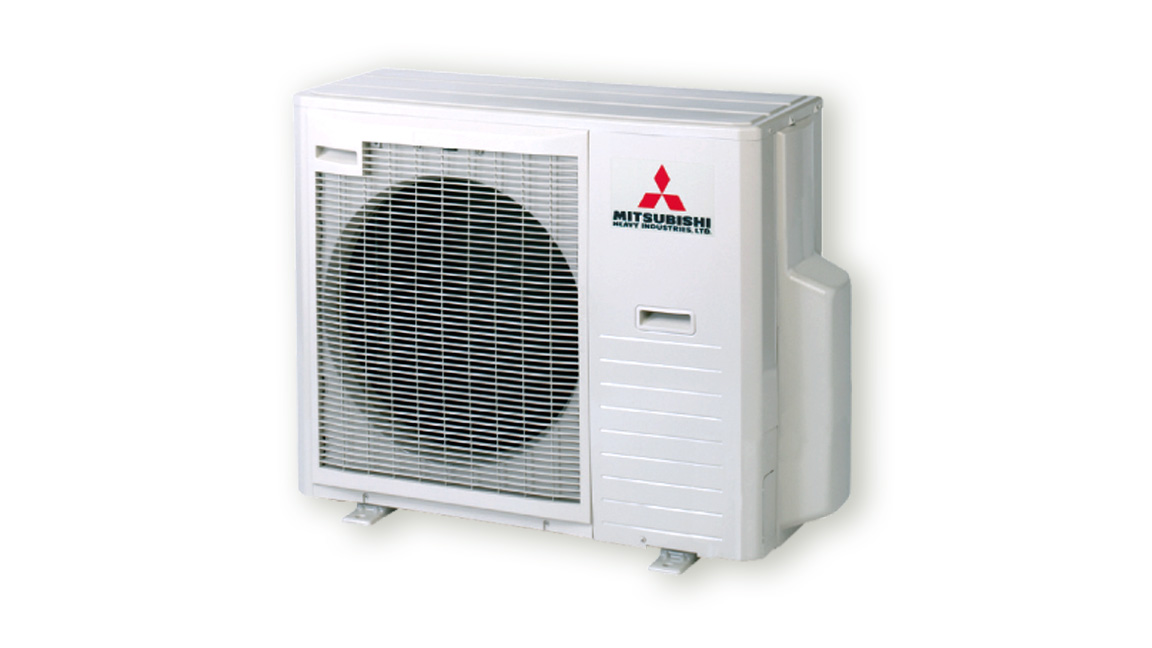

SCM-ZM SeriesSCM71ZM-S

SCM71ZM-S
Multi Split Series - SCM-ZM Series

SCM71ZM-S

Cooling Capacity

7.1kW

Heating Capacity

8.6kW

Dimensions

Outdoor 750x880x340mm

For design advice and pricing, please call us on 1300 652 247 and speak with our experienced staff

Category:
  • Connects up to 4 indoor units
  • 24 models of indoor units to choose from
  • Efficient and quiet operation
  • Smart energy use option
  • Individual indoor unit control for maximum occupant comfort
  • 70m long pipe run for flexible installation
EER Cooling T1   4.08
COP Heating H1   4.30
CurrentØ Cooling T1 A 7.6
Heating H1 A 8.8
Rec Circuit Breaker     25A
Sound power level (JIS C9612) Cooling(Outdoor) dB (A) 65
Heating(Outdoor) dB (A) 66
External dimensionsØ (HXWXD) mm 750x880x340
Net weight Outdoor kg 62
Refrigerant piping Liquid line mm Ø6.35 X 4
Gas line mm Ø9.52 X 4
Union mm (φ9.52→φ12.7 ) X 2
Connection method   Flare connection
Refrigerant R410A Volume kg 3.15
Pre-Charged m 40
Indoor Unit Combination SRK-ZMA kW 2.0, 2.5, 3.5, 5.0
SRK-ZMXA kW 2.0, 2.5, 3.5, 5.0, 6.0
SRF-ZMXA kW 2.5, 3.5, 5.0
SRR-ZM kW 2.5, 3.5, 5.0, 6.0
FDTC-VF kW 2.5, 3.5, 5.0, 6.0
FDUM-VF kW 5.0
FDE-VG kW 5.0
Indoor Unit Connection     2 to 4 Units
Indoor Connection Capacity   kW 4.0kW to 12.5kW

Note 1 Rated data is measured using SRK*ZJX indoor unit at an equilivant indoor/ outdoor capacity
Note 2 Currently there is no energy labelling standard for this type of productØ
