FDUM Ducted Series (Medium Static Pressure)FDUM100AVNVF2

FDUM100AVNVF2
FDUM100AVNVF2 - Image 2

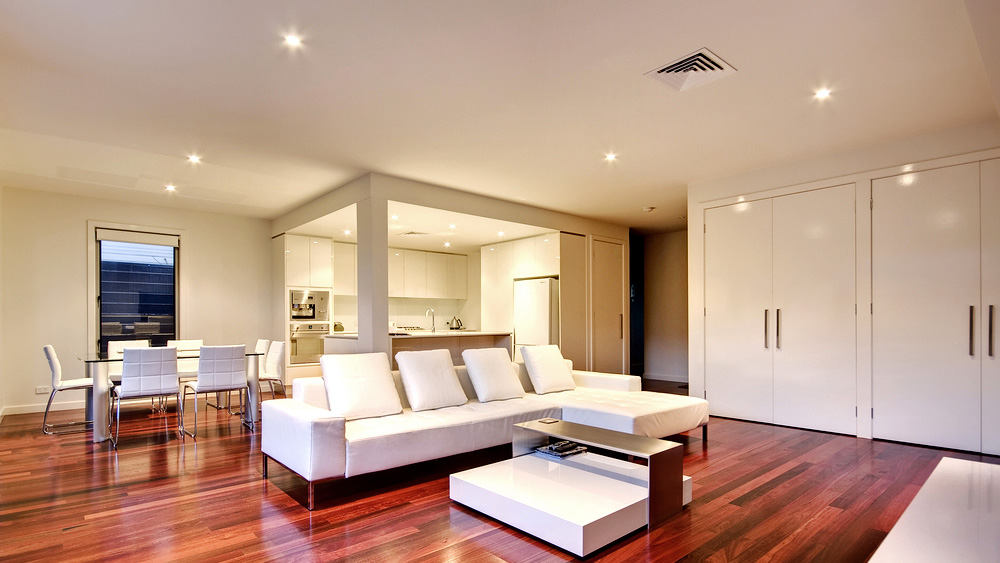

FDUM100AVNVF2 - Image 3
Ducted Systems - FDUM Ducted Series (Medium Static Pressure)

FDUM100AVNVF2

Cooling Capacity

10.0kW

Heating Capacity

11.2kW

Dimensions

Indoor 280x1370x740mm, Outdoor 845x970x370mm

Category:
  • Single Phase model
  • Automatic operation mode control
  • Weekly / Sleep timer
  • Silent operation
  • Wired and wireless control options
Set   FDUM100AVNVF2
Indoor   FDUM100VF2
Outdoor   FDCA100VN
Power supply Outdoor Unit   1 Phase 230V 50Hz
CapacityØ Cooling T1 kW 10.0 (4.0-11.2)
  Heating H1 11.2 (4.0-12.5)
  Heating H2 11.4
InputØ Cooling T1 kW 2.92
  Heating H1 3.20
EER Cooling T1   3.42
COP Heating H1   3.50
Sound pressure level (JIS C9612)Ø Indoor dB (A) P-Hi:44 Hi:38 Me:36 Lo:30
  Outdoor 49
Sound power level (JIS C9612) Outdoor dB(A) 70
Airflow Indoor l/s P-Hi: 600 Hi: 467 Me: 417 Lo: 317
External Static Pressure Pa 100
External dimensions (HXWXD) Indoor mm 280x1370x740
  Outdoor 845x970x370
Net weight Indoor kg 54
  Outdoor 81
Refrigerant piping Liquid line mm Ø9.52
  Gas line Ø15.88
  Connection method   Flare Connection
Refrigerant R410A Quantity kg 3.8
  Pre charged to pipe length m 30
Maximum pipe length m 50
Supply air connection mm 170 x 1200
Return air connection mm 235 x 1280
Controller   RC-E5, RC-EX3 or RCN-KIT4-E2
